Fluorescent Fiber Optic Temperature Sensor
An electrically passive optical sensing element for direct contact measurement where metallic sensor leads can compromise insulation or signal integrity.
Direct optical measurement at the thermal point
Fiber Optic Temperature Sensors and Monitoring Systems
Fluorescence-lifetime probes, multi-channel instruments and application engineering for transformer windings, reactors, switchgear and high-voltage EMI/RFI environments.
Core products
One optical measurement chain, configured around your equipment
Select the probe for the thermal interface, the instrument for channel and integration needs, and the installation architecture for the equipment insulation system.

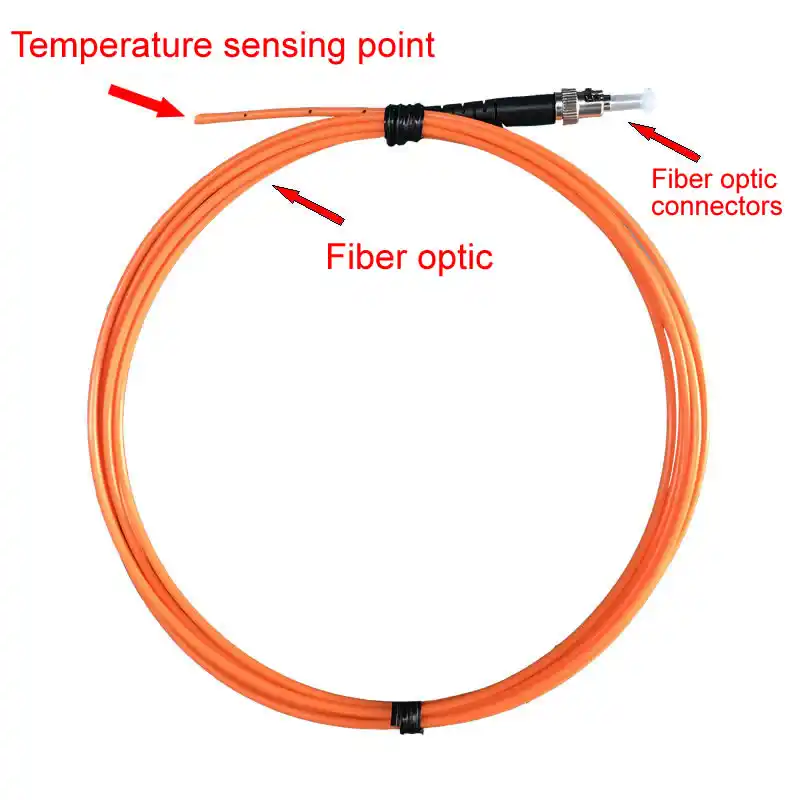

Fluorescent Fiber Optic Temperature Probe
A quartz-fiber probe that carries light to and from a fluorescent sensing tip for point-based temperature measurement.
Fiber Optic Temperature Measurement System
A complete instrument-and-probe platform for collecting point temperatures in electrically demanding environments.

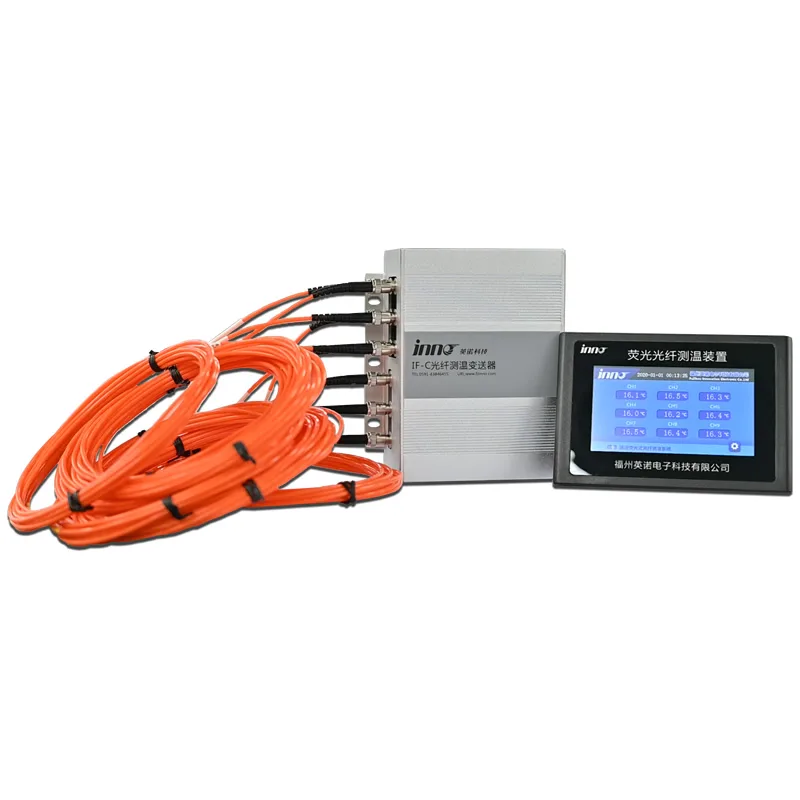

Multi-Channel Fiber Optic Temperature Monitor
A centralized monitor for organizing multiple fluorescent optical probes into one temperature, alarm and communications layer.

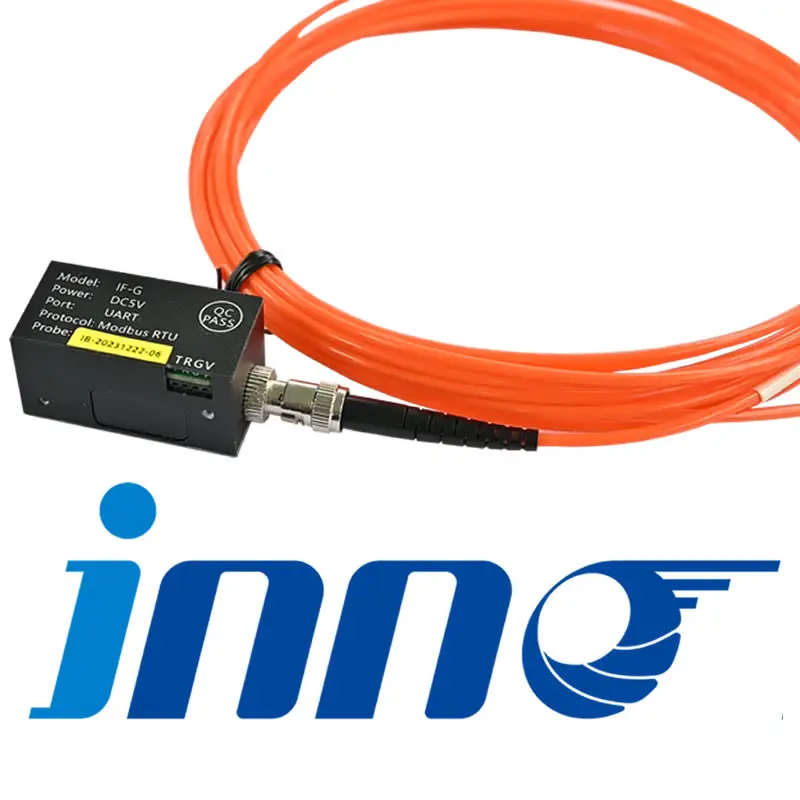

IF-G Fluorescent Fiber Optic Temperature Sensing Module
A compact OEM measurement module for equipment manufacturers building fluorescent fiber optic temperature channels into a larger control platform.

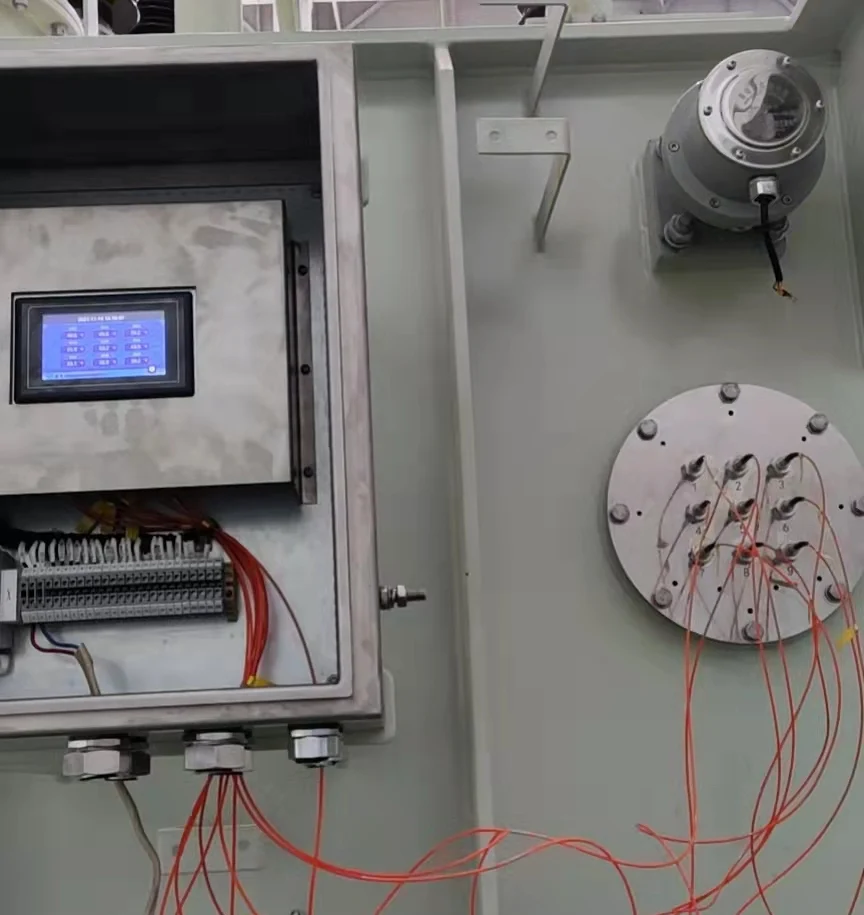

Transformer Winding Fiber Optic Temperature System
A probe-and-monitor architecture for direct winding temperature measurement during transformer operation.
Fluorescence lifetime
Temperature derived from optical decay, not electrical signals
Excitation light reaches a fluorescent sensing tip through quartz fiber. The monitor analyzes the temperature-dependent emission lifetime, keeping the sensing point passive and immune to EMI/RFI.
01Fluorescent probesDirect points inside equipment
optical fiber02Measurement instrumentExcitation, lifetime processing, alarms
confirmed interface03Plant systemSCADA, DCS or local supervision
Power equipment
Measure representative thermal points conventional methods cannot easily reach
Transformer Fiber Optic Temperature Monitoring
A transformer fiber optic temperature monitoring system gives designers and operators a direct view of selected internal temperatures without placing powered electronics or metallic signal conductors at the sensing point.
Transformer Winding Hotspot Monitoring
Winding hot spots are localized thermal conditions shaped by conductor losses, cooling flow and construction. Embedded optical probes complement calculated thermal models with direct measurements at selected design locations.
Oil-Immersed Transformer Temperature Monitoring
Oil and top-oil indicators do not directly measure every winding location. Fluorescent probes can be integrated at engineered winding points and routed through a suitable exit arrangement to an external monitor.
Dry-Type Transformer Temperature Monitoring
Dry-type transformers operate near strong electromagnetic fields and constrained cooling paths. Optical probes support direct point measurement without introducing a conductive sensor loop into the winding region.
Reactor Winding Temperature Monitoring
Reactor losses and magnetic fields create a demanding measurement environment. Fluorescent fiber optic probes provide a dielectric path to representative internal winding points.
Switchgear Fiber Optic Temperature Monitoring
Bolted joints and contacts can develop localized temperature rise as resistance increases. Permanently installed optical probes support continuous trend and alarm data without depending on radio transmission inside a metal enclosure.
Transformer winding hot spots
Plan embedded measurement before winding manufacture
Probe placement, fixation, optical routing, fiber exit and channel identification should be part of transformer thermal and insulation design—not an afterthought during commissioning.
View winding approach
Product selection
Specify what must be measured before choosing a model
1. Measurement points
Define the physical point, its thermal purpose and the installation stage.
2. Operating envelope
State expected temperature, dielectric environment, routing and mechanical constraints.
3. System interface
Define channels, alarm ownership, display and plant communication requirements.
Technical resources
Make the measurement architecture defensible
What Is a Fiber Optic Temperature Sensor?
A practical engineering guide to what is a fiber optic temperature sensor? for high-voltage and industrial equipment.
How Do Fiber Optic Temperature Sensors Work?
A practical engineering guide to how do fiber optic temperature sensors work? for high-voltage and industrial equipment.
Fluorescence Lifetime Temperature Measurement Explained
A practical engineering guide to fluorescence lifetime temperature measurement explained for high-voltage and industrial equipment.
Fiber Optic Temperature Sensor Accuracy
A practical engineering guide to fiber optic temperature sensor accuracy for high-voltage and industrial equipment.
Fiber Optic Temperature Sensor Response Time
A practical engineering guide to fiber optic temperature sensor response time for high-voltage and industrial equipment.
Fiber Optic Temperature Sensor Temperature Range
A practical engineering guide to fiber optic temperature sensor temperature range for high-voltage and industrial equipment.
Technical questions
Frequently Asked Questions
What is a fluorescent fiber optic temperature sensor?
It is a point sensor that sends light to a fluorescent tip and calculates temperature from the decay lifetime of the returned emission.
Why use fiber optic temperature probes in transformers?
The probe is passive and dielectric at the measurement point, supporting direct winding measurements without conductive sensor wiring in the high-voltage region.
Are channel count and communication fixed?
No. The final specification depends on the selected instrument. Confirm channel count and interfaces on the product datasheet.
